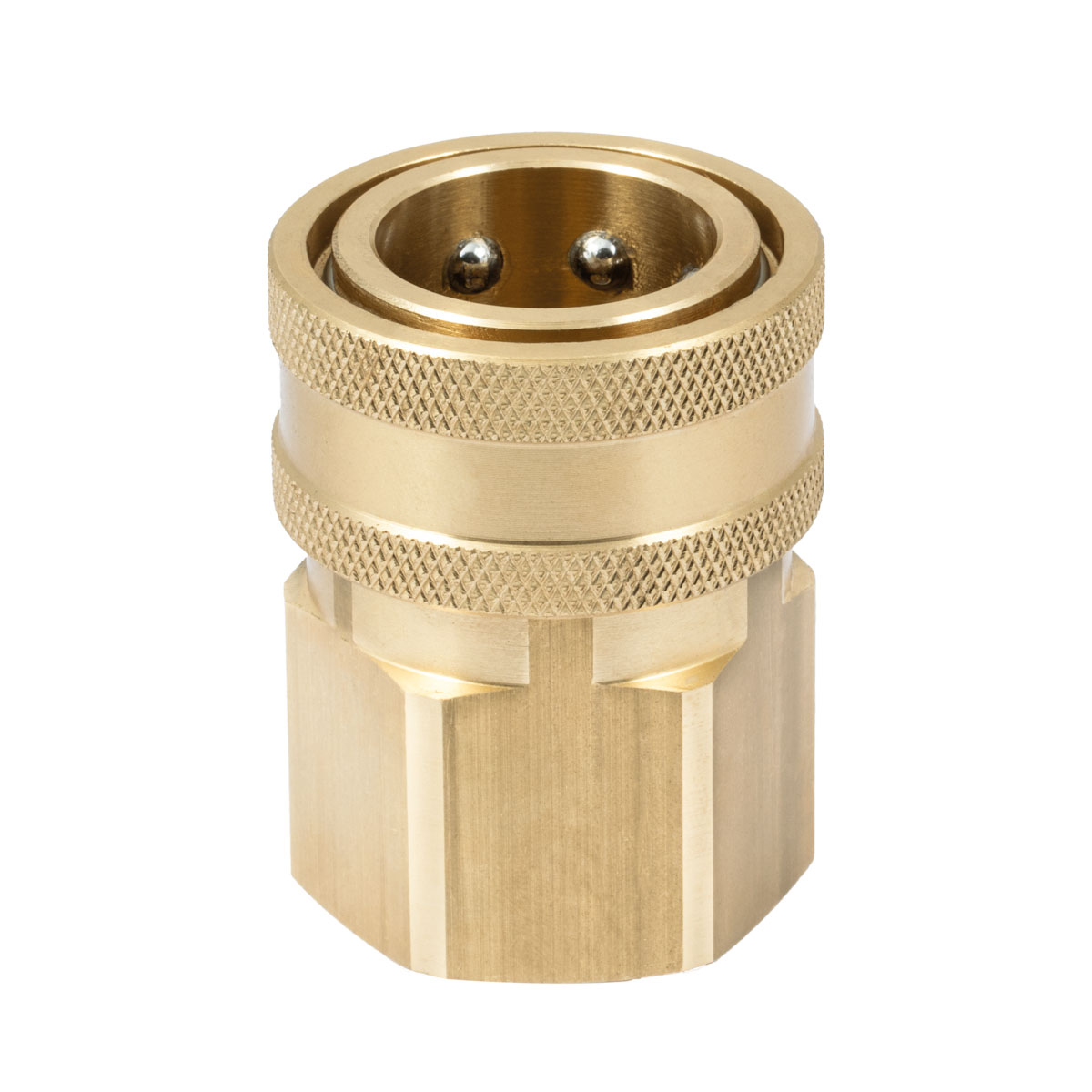

Female Threaded Coupling

Coupling series especially developed for connecting feed lines on Manifolds.
Temperature control units or chiller cooling lines.
The Couplings offer maximum flow capacity.

Material
Coupling


Back Body

Brass
Valve Body Brass
Sleeve Brass
Locking Balls

AISI 420

Spring AISI 301
Seal FKM


Plug

Brass

Working Pressure

15 bar, maximum static working pressure with safety factor of 4 to 1.

Working Temperature

Water -15°C up to +140°C
Oil -15°C up to +180°C
